Suction Units

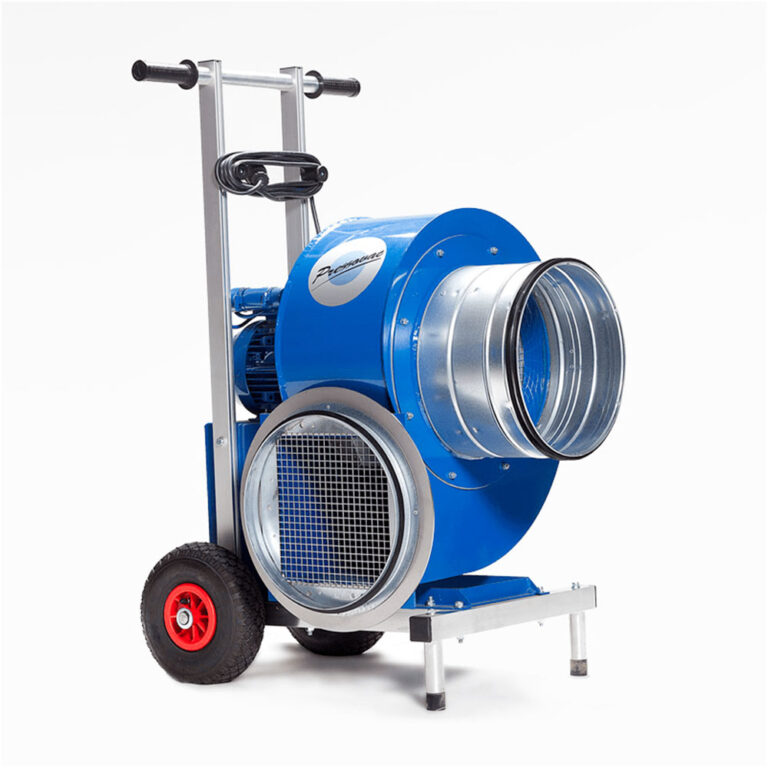

Suction unit 1.5kW
For cleaning small buildings and office facilities. Filter unit F-50 Mini and connection pipe size Ø315 mm are suitable with the suction unit 1.5 kW.
- Air volume: 4000 m³/h
- Max. pressure: 1700 Pa
- Weight: 45kg
- Electrical connection: 230V / Single phase 10A
- Hose Connections: 315mm
Filter unit and hose need to be ordered separately.
Technical Data
|
Model |
Electrical connections |
Imax (A) |
Weight (kg) |
dB (A) |
|---|---|---|---|---|
|
Suction unit 1,5kW |
230V/10A |
9,1 |
45 |
76 |
|
Model |
Flow (m³/h) |
Pressure (Pa) |
Inlet/Outlet Hoses (Ø) |
Product code |
|---|---|---|---|---|
|
Suction unit 1,5kW |
4000 |
1700 |
Ø315 |
206.001.005 |

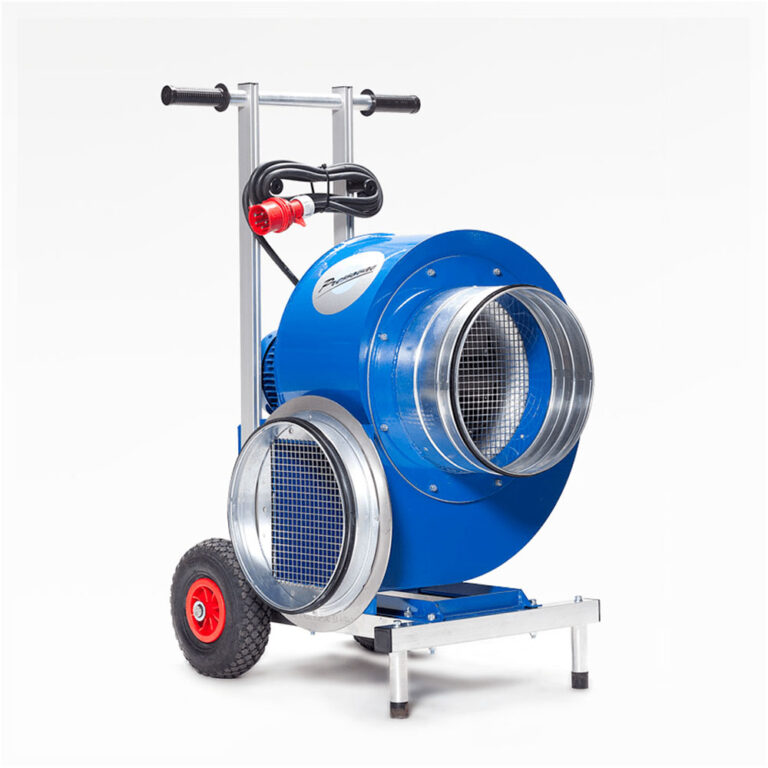

Suction unit 2.2kW
For cleaning small buildings and office facilities. Filter unit F-100 Maxi and con- nection pipe size Ø315 mm are suitable with the suction unit 2.2kW
- Air volume: 5500 m³/h
- Max. pressure: 1700 Pa
- Weight: 45kg
- Electrical connection: 400V / Three phase 16A
- Hose Connections: 315mm
Filter unit and hose need to be ordered separately.
Technical Data
|
Model |
Electrical connections |
Imax (A) |
Weight (kg) |
dB (A) |
|---|---|---|---|---|
|
Suction unit 2.2kW |
400V/16A |
4.6 |
55 |
80 |
|
Model |
Flow (m³/h) |
Pressure (Pa) |
Inlet/Outlet Hoses (Ø) |
Product code |
|---|---|---|---|---|
|
Suction unit 1,5kW |
5500 |
1700 |
Ø315 |
206.001.006 |

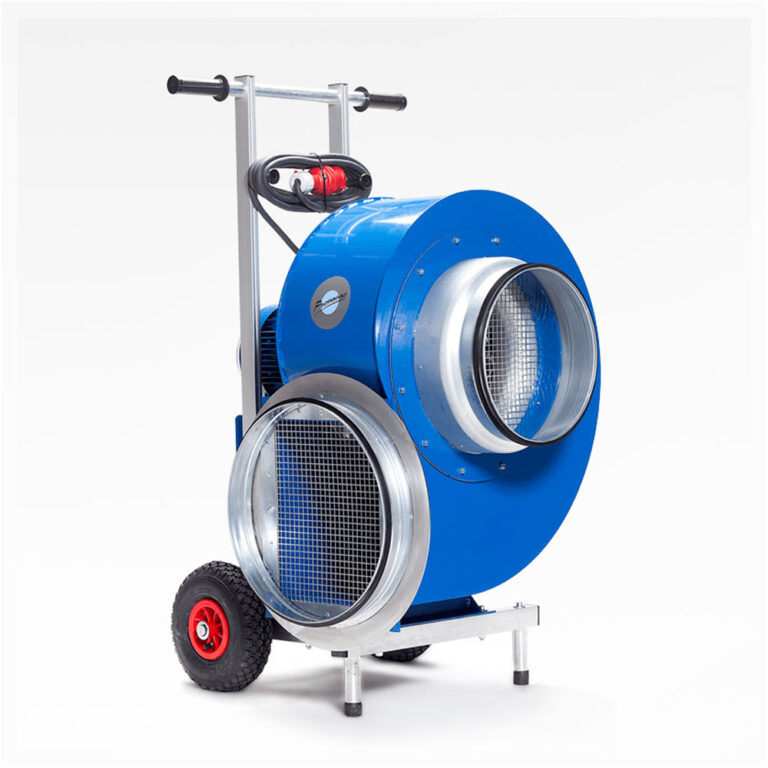

Suction unit 4.0kW
For cleaning apartment buildings, public facilities and other similar properties. Filter unit F-100 Maxi and connection pipe size Ø315 mm are suitable with the suction unit 4.0kW.
- Air volume: 8000 m³/h
- Max. pressure: 2300 Pa
- Weight: 55kg
- Electrical connection: 400V / Three phase 16A
- Hose Connections: 315mm
Filter unit and hose need to be ordered separately.
Technical Data
|
Model |
Electrical connections |
Imax (A) |
Weight (kg) |
dB (A) |
|---|---|---|---|---|
|
Suction unit 4,0kW |
400V/16A |
7.9 |
55 |
80 |
|
Model |
Flow (m³/h) |
Pressure (Pa) |
Inlet/Outlet Hoses (Ø) |
Product code |
|---|---|---|---|---|
|
Suction unit 4,0kW |
8000 |
2300 |
Ø315 |
206.001.007 |

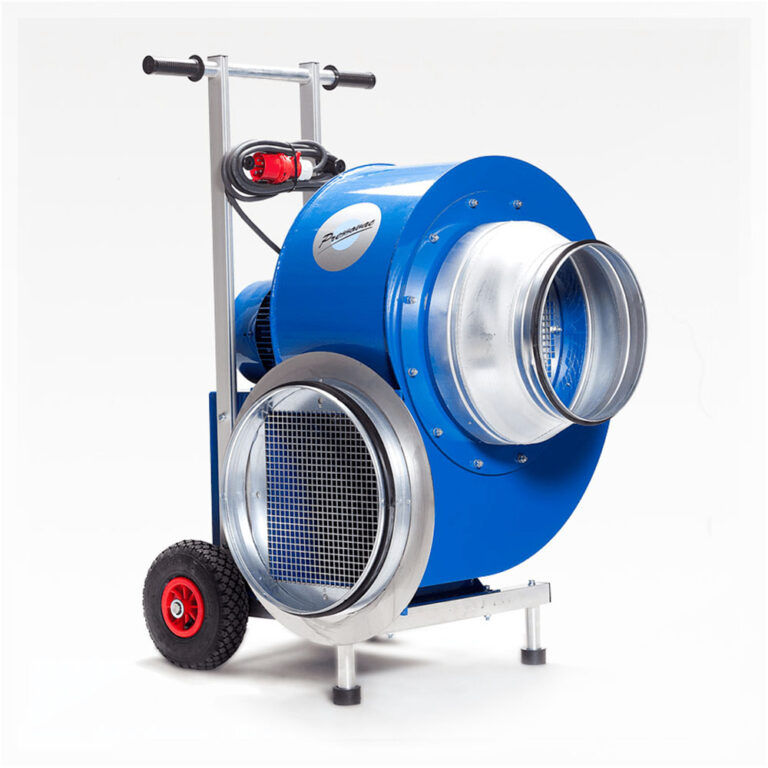

Suction unit 7.5kW
For cleaning industrial plants and other large properties. Filter unit F-100 Maxi and connection pipe size Ø315 mm are suitable with the suction unit 7.5 kW.
- Air volume: 10000 m³/h
- Max. pressure: 3500 Pa
- Weight: 90kg
- Electrical connection: 400V / Three phase 16A
- Hose Connections: 315mm
Filter unit and hose need to be ordered separately.
Technical Data
|
Model |
Electrical connections |
Imax (A) |
Weight (kg) |
dB (A) |
|---|---|---|---|---|
|
Suction unit 4,0kW |
400V/16A |
14 |
90 |
85 |
|
Model |
Flow (m³/h) |
Pressure (Pa) |
Inlet/Outlet Hoses (Ø) |
Product code |
|---|---|---|---|---|
|
Suction unit 4,0kW |
10000 |
3500 |
Ø315 |
206.001.008 |
